A block plant manager opens the curing chamber after a 24-hour cycle and inspects the first pallet of blocks. The first ten blocks are perfect: sharp edges, consistent color, and high compressive strength. But when he moves to the pallet at the back of the chamber, the blocks are different. The edges are slightly crumbly, the color is paler, and a few have hairline cracks. The mix design was the same. The block machine settings were the same. The only variable was the curing environment. This is a familiar problem for concrete product manufacturers, and it is the reason why the Curing Kiln is one of the most important pieces of equipment in a modern block plant. A well-designed curing kiln provides uniform temperature, humidity, and airflow across every pallet, ensuring that every block achieves the same strength and appearance.
This guide is written for procurement managers and plant engineers who are specifying a Curing Kiln for a new or upgraded block production line. We will explain how curing affects concrete strength and durability, how the kiln controls temperature and humidity, the design features that ensure uniformity, the specifications to include in a purchase order, and the criteria for evaluating a supplier. We will also provide detailed product parameters from our factory at QUANGONG MACHINERY CO.,LTD. Whether you are producing hollow blocks, pavers, or solid blocks, this guide will help you select a curing kiln that delivers consistent, high-quality products.
Curing is the process by which concrete develops its strength and durability through the chemical reaction between cement and water, known as hydration. The hydration process is sensitive to temperature and moisture. If the concrete dries out too quickly, hydration stops, and the block remains weak and porous. If the concrete is too cold, hydration slows down, and the block may not develop adequate strength within the production cycle. If the concrete is too hot, the surface may dry too quickly, causing shrinkage cracks. The curing kiln provides the controlled environment in which hydration can proceed optimally. The table below shows the effect of curing conditions on block properties.
| Curing Condition | Effect on Block Properties | Typical Defect |
| Low humidity | Incomplete hydration, low strength | Dusting, crumbly edges |
| High temperature (early) | Rapid surface drying, thermal stress | Hairline cracks, surface crazing |
| Low temperature | Slow strength gain | Weak blocks, longer curing time |
| Non-uniform conditions | Variable strength across pallets | Inconsistent product quality |
| Optimal conditions | Full hydration, high strength | Consistent, high-quality blocks |
At QUANGONG MACHINERY CO.,LTD, our factory designs and manufactures Curing Kilns that provide precise control over temperature, humidity, and airflow. We understand that curing is not a secondary process; it is the process that determines whether the blocks meet the strength and durability requirements of the market. Our engineering team works with our customers to design a curing kiln that matches their production capacity and product requirements.

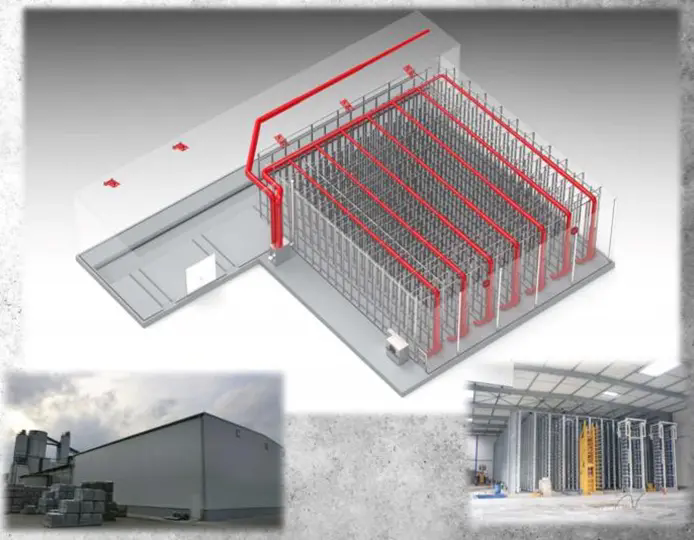

A Curing Kiln controls temperature and humidity through a combination of heating, humidification, ventilation, and control systems. The most common type of curing kiln for concrete blocks is the steam curing chamber, which uses steam to raise the temperature and humidity. The steam is generated by a boiler and distributed through a network of pipes or nozzles inside the chamber. The temperature is controlled by regulating the steam flow, and the humidity is controlled by the amount of steam introduced. A well-designed kiln also includes a ventilation system to remove excess moisture and to ensure uniform distribution of heat and humidity. The table below summarizes the key control systems in a curing kiln.
| System | Function | Typical Control Range |
| Steam Generator | Produces steam for heating and humidification | Temperature: 40°C - 80°C |
| Steam Distribution | Distributes steam uniformly throughout the chamber | Humidity: 90% - 100% RH |
| Ventilation | Removes excess moisture and ensures air circulation | Air changes per hour: 2-5 |
| Temperature Sensors | Monitors temperature at multiple points | Accuracy: +/- 1°C |
| Humidity Sensors | Monitors relative humidity | Accuracy: +/- 3% RH |
| Control System | Regulates steam flow and ventilation based on sensor data | PLC-based, programmable curing profiles |
At our factory, we design our Curing Kilns with advanced control systems that allow the operator to program a curing profile that matches the specific product. The profile defines the temperature and humidity at each stage of the curing cycle, from the initial setting period to the final cooling period. This level of control ensures that every block in the chamber experiences the same curing conditions, regardless of its position. Our goal is to provide our customers with a curing kiln that delivers consistent, high-quality results.
Uniform curing across all pallets is achieved through careful design of the kiln's airflow, steam distribution, and insulation. The most common cause of non-uniform curing is poor air circulation. If the steam is not distributed evenly, some areas of the chamber will be hotter and more humid than others. This leads to variation in block strength and appearance. To prevent this, a well-designed Curing Kiln uses a combination of forced-air circulation and strategically placed steam nozzles. The airflow is directed through the stacks of pallets, ensuring that every block is exposed to the same conditions. The table below summarizes the design features that ensure uniformity.
| Design Feature | Function | Benefit for Uniformity |
| Forced-Air Circulation | Fans circulate air throughout the chamber | Eliminates hot and cold spots |
| Steam Nozzle Placement | Nozzles positioned for even steam distribution | Prevents localized overheating |
| Insulated Walls | Reduces heat loss through the chamber walls | Maintains consistent temperature |
| Sealed Doors | Prevents steam leakage and air infiltration | Maintains stable humidity |
| Pallet Spacing | Ensures gaps between pallets for airflow | Allows steam to reach all surfaces |
| Multi-Point Sensing | Sensors at different locations in the chamber | Enables zone-based control |
At QUANGONG MACHINERY CO.,LTD, our factory uses advanced CFD (computational fluid dynamics) simulation to design the airflow and steam distribution in our Curing Kilns. This allows us to optimize the placement of fans and nozzles before the kiln is built. We also use high-quality insulation and sealed doors to minimize heat loss and steam leakage. Our goal is to provide a curing kiln that delivers uniform conditions across every pallet, every cycle.
When purchasing a Curing Kiln, the buyer should include detailed specifications in the purchase order to ensure that the product meets the required performance and quality standards. The key specifications are the chamber dimensions, the maximum temperature, the temperature uniformity, the humidity range, the heating source, the control system, the insulation, the door type, and the loading system. The chamber dimensions should be specified in meters. The maximum temperature should be specified in degrees Celsius. The temperature uniformity should be specified as a tolerance (e.g., +/- 2°C). The humidity range should be specified as a percentage. The heating source should be specified (e.g., steam, electric, hot water). The control system should be specified (e.g., PLC with touch screen). The insulation should be specified by type and thickness. The door type should be specified (e.g., sliding, swing). The loading system should be specified (e.g., manual, automatic). The table below summarizes the specifications that should be included in a purchase order.
| Specification | Unit of Measure | Example |
| Chamber Dimensions | m | 12 x 4 x 3 m |
| Maximum Temperature | °C | 80°C |
| Temperature Uniformity | °C | +/- 2°C |
| Humidity Range | % RH | 60% - 100% |
| Heating Source | Type | Steam |
| Control System | Type | PLC with touch screen |
| Insulation | Type and thickness | Polyurethane, 100 mm |
| Door Type | Type | Sliding |
| Loading System | Type | Automatic |
At our factory, we work with our customers to ensure that all specifications are clearly defined and understood before production begins. We provide detailed drawings and technical data for approval. Our quality control system includes inspection of raw materials, in-process inspection, and final inspection before shipment. Our goal is to deliver Curing Kilns that meet or exceed our customers' expectations.
Evaluating a supplier of Curing Kilns requires a focus on design capability, manufacturing quality, control system expertise, project management, and after-sales support. The supplier must have the engineering capability to design a kiln that meets the customer's capacity and uniformity requirements. They must have the manufacturing capability to build the kiln to the required specifications. They must have expertise in control systems and curing profiles. They must have project management capability to coordinate the design, manufacturing, delivery, and installation. And they must provide after-sales support, including maintenance and spare parts. The table below summarizes these evaluation criteria.
| Evaluation Criterion | What to Look For | Why It Matters |
| Design Capability | CFD simulation, custom design | Ensures uniform curing conditions |
| Manufacturing Quality | ISO 9001, high-quality materials | Ensures kiln durability and performance |
| Control System Expertise | PLC programming, curing profiles | Enables precise temperature and humidity control |
| Project Management | Design, delivery, installation coordination | Ensures timely completion |
| After-Sales Support | Maintenance, spare parts, training | Ensures long-term reliability |
At QGM, our factory has been designing and manufacturing Curing Kilns for over two decades. We have a strong track record of quality, delivery, and customer satisfaction. We use CFD simulation to optimize our kiln designs, and we maintain an ISO 9001 quality management system. Our project management team is dedicated to ensuring that every kiln is delivered and installed on time. We invite you to evaluate us against these criteria and to consider us as your partner for Curing Kilns.
The following table provides the key product parameters for our Curing Kilns. These kilns are designed for concrete block and paver production lines and are available in a range of sizes and configurations. Our factory can also produce custom kilns to meet specific requirements.
| Parameter | Specification Range | Notes |
| Chamber Volume | 50 - 500 m³ | Custom sizes available |
| Maximum Temperature | 80°C | Higher temperatures available |
| Temperature Uniformity | +/- 2°C | Across all pallets |
| Humidity Range | 60% - 100% RH | Controlled by steam injection |
| Heating Source | Steam, Electric, Hot Water | Selected for site conditions |
| Control System | PLC with touch screen, programmable profiles | Data logging available |
| Insulation | Polyurethane, 100-150 mm | High thermal efficiency |
| Door Type | Sliding, Swing, Automatic | Selected for loading system |
| Loading System | Manual, Semi-Automatic, Automatic | Selected for production capacity |
| MOQ | 1 unit | Custom design available |
| Lead Time | 8 - 16 weeks | Depends on size and customization |
At our factory, we manufacture our Curing Kilns to meet these specifications and more. We can customize the chamber size, heating source, control system, and loading system to suit your specific requirements. Our quality control system includes inspection of raw materials, in-process inspection, and final inspection before shipment. Our goal is to provide our customers with high-quality Curing Kilns that deliver uniform, high-quality products.
Question 1: What is the ideal curing temperature for concrete blocks?
Answer: The ideal curing temperature depends on the type of cement and the product requirements. In general, steam curing at 60°C to 80°C for 8 to 12 hours provides good strength development without causing thermal cracking. The curing profile should include a gradual heating phase, a constant temperature phase, and a gradual cooling phase to avoid thermal stress. Our factory can provide specific recommendations for your mix design and product type.
Question 2: How does humidity affect curing?
Answer: Humidity is essential for curing because it prevents the concrete from drying out. If the concrete dries too quickly, the hydration reaction stops, and the block remains weak. A relative humidity of 90% to 100% is recommended during the curing process. The Curing Kiln maintains this humidity by injecting steam or water vapor into the chamber. The humidity is monitored and controlled by sensors and a PLC system.
Question 3: Can I cure different products in the same kiln?
Answer: Yes, you can cure different products in the same kiln, but you may need to use different curing profiles for each product. The PLC control system allows you to store multiple profiles and select the appropriate one for each batch. It is important to ensure that the products in the same batch have similar curing requirements to avoid compromising quality. Our factory can help you develop curing profiles for your product range.
Question 4: How long does a curing cycle take?
Answer: The curing cycle typically takes 18 to 24 hours, including the heating phase, the constant temperature phase, the cooling phase, and the resting phase. The exact duration depends on the product type, the mix design, and the curing temperature. In some cases, a shorter cycle may be possible with accelerated curing methods, but this must be carefully controlled to avoid compromising quality. Our factory can help you optimize the curing cycle for your production requirements.
Question 5: What maintenance is required for a Curing Kiln?
Answer: Regular maintenance of a Curing Kiln includes checking the steam generator, inspecting the steam distribution system for leaks or blockages, cleaning the temperature and humidity sensors, checking the door seals for wear, and inspecting the insulation for damage. The control system should be calibrated periodically to ensure accurate temperature and humidity control. Our factory provides a detailed maintenance manual and offers after-sales support to help our customers keep their kilns in optimal condition.
A Curing Kiln contributes to uniform product quality by providing precise control over temperature, humidity, and airflow throughout the curing process. The kiln ensures that every block in the chamber experiences the same conditions, which leads to consistent strength, appearance, and durability. For buyers, selecting the right Curing Kiln requires an understanding of the curing requirements of the product, the design features that ensure uniformity, the specifications to include in a purchase order, and the criteria for evaluating a supplier. At QUANGONG MACHINERY CO.,LTD, our factory has the expertise and the capability to design and manufacture Curing Kilns that meet the most demanding requirements. We use advanced simulation tools, high-quality materials, and rigorous quality control to ensure that our kilns deliver uniform, high-quality products.
Whether you are building a new block plant or upgrading an existing curing system, we invite you to contact us to discuss your requirements. We can provide samples, technical data, and customized solutions. Our commitment to quality and customer satisfaction has made us a trusted partner for block manufacturers around the world.
Contact QUANGONG MACHINERY CO.,LTD today to discuss your Curing Kiln requirements and discover how our kilns can improve the uniformity and quality of your concrete products.
-
