Block Brick Machinery Curing Kiln

QGM Block Machine is one of prominent manufacturer, producer, and exporter of Block Brick Machinery Curing Kiln in China. Concrete brick machine curing kiln is a kind of equipment used to produce bricks. Its main function is to cure the formed bricks to ensure that their strength and quality meet the design requirements. The concrete brick machine curing kiln adopts a frame-type reinforced concrete structure. The overall layout needs to consider the number of plates per kiln, the bearing capacity, and the location of steam pipes and doors and windows. The concrete structure curing kiln is heavy, strong, and has good thermal insulation.

The concrete brick machine curing kiln is mainly composed of a kiln body, a steam system (or a heat sink system), and a temperature control system as follows:

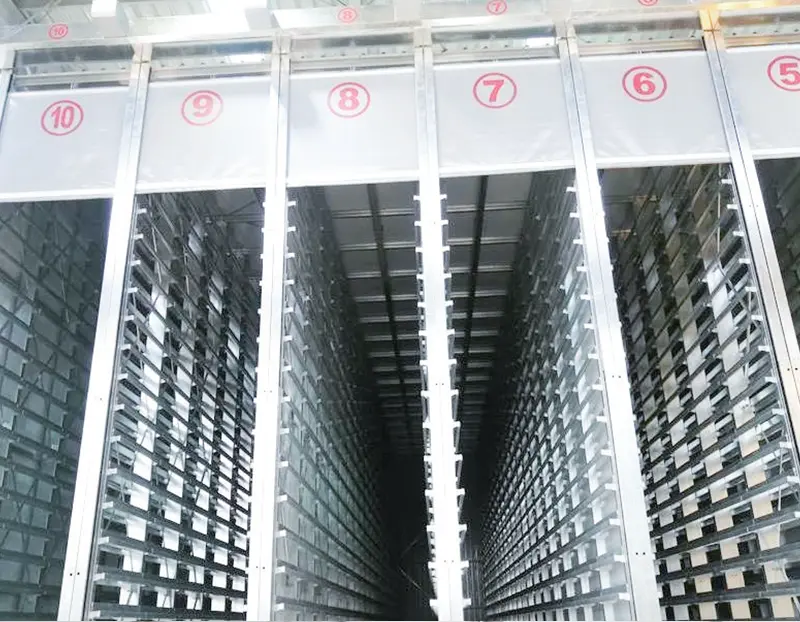

1. Kiln body frame: The kiln body is the main structure of the curing kiln, usually composed of a steel structure support, and the outer wall of the kiln is assembled with insulation materials to ensure temperature control during the curing process. There are multiple curing positions in the kiln body for placing concrete bricks for curing. The bottom of the kiln body is equipped with an in-and-out conveying ground roller to facilitate the entry and exit of the template.

‌2. Steam system (or heat sink system): This system is used to provide the heat required for curing, and transfers heat to the concrete bricks in the kiln body through steam or heat sinks to promote their hydration reaction and strength development.

‌3. Temperature control system: The temperature control system includes electrical control system (central controller, control cabinet), hot air circulation device, temperature sensor and other parts. The system can monitor and adjust the temperature in the curing kiln in real time to ensure that it fluctuates within an appropriate range to meet the curing requirements of concrete bricks.
