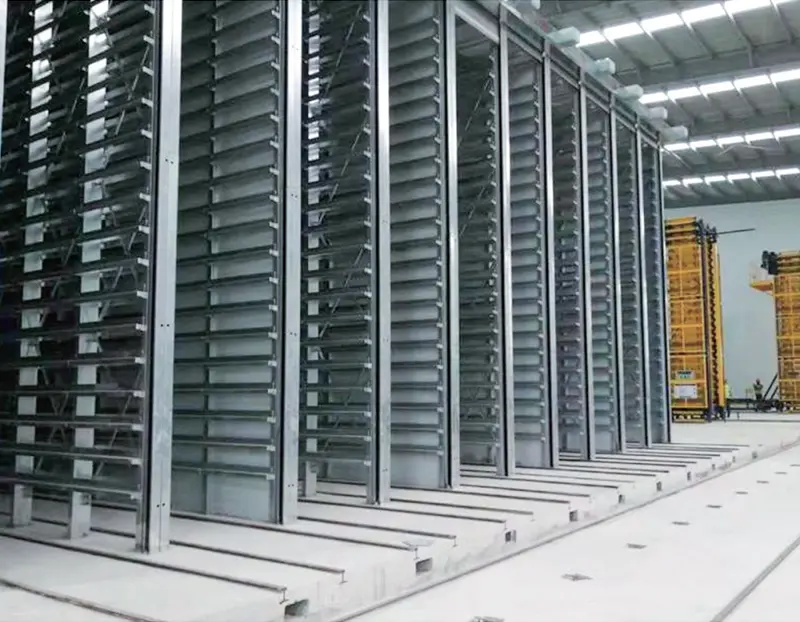

Concrete Brick Machine Curing Kiln

Find a huge selection of Concrete Brick Machine Curing Kiln from China at QGM Block Machine. Block Making Machine Curing Kiln is a facility designed to provide a suitable curing environment for block bricks. The curing room of the block making machine is generally composed of a frame, a bracket and a ceiling, which can protect the blocks from interference from the external environment. In the curing room, it is usually equipped with an advanced temperature and humidity automatic control system, which can monitor and adjust the temperature and humidity in the curing room in real time to keep it within a range suitable for the curing of block bricks.

Main functional advantages of the curing room of the block making machine:

Strengthen physical properties: By accurately controlling the temperature and humidity, the hydration reaction of cement and other cementitious materials in the blocks is accelerated, so that the blocks can reach the designed strength in a short time, improve the physical properties such as compression and flexural resistance, and improve dimensional stability: A stable curing environment can effectively reduce the shrinkage and deformation of the blocks caused by rapid loss of moisture or drastic temperature changes, ensure the accuracy of the block size, facilitate subsequent construction, and improve construction efficiency and building quality.

Enhance durability: Appropriate temperature and humidity conditions can make the block structure more compact, enhance its anti-seepage, anti-freeze, anti-weathering and other properties, extend the service life of the blocks in the building, and reduce the cost of building maintenance.

Working principle of curing room of block forming machine:

Temperature control logic: The temperature and humidity sensor collects indoor temperature data in real time and transmits it to the PLC control system. When the temperature is lower than the set value, the control system automatically starts the heating rod to heat up; when the temperature is higher than the set value, the refrigeration unit starts to cool down to maintain a constant indoor temperature.

Humidity adjustment principle: The humidity sensor monitors the indoor humidity in real time. When the humidity is lower than the set value, the ultrasonic humidifier starts to work to increase the humidity; when the humidity is too high, the rotary dehumidifier starts to reduce the humidity to achieve precise control of the humidity.

Ventilation circulation mechanism: The ventilation system automatically starts at a preset time interval. The ventilator draws out the indoor air and introduces fresh air from the outside to promote air circulation, so that the temperature and humidity distribution in the curing room is uniform.

Daily maintenance and management of curing room of block forming machine:

Equipment maintenance: Regularly clean, maintain and repair various equipment in the curing room. Such as cleaning the transducer of the humidifier, checking the tightness of the belt of the ventilator, calibrating the temperature and humidity sensor, etc., to ensure stable equipment performance and extend the service life of the equipment.

Environmental cleaning and maintenance: Keep the maintenance room clean and tidy, regularly clean up debris and stagnant water on the ground, and prevent dust and debris from sticking.
